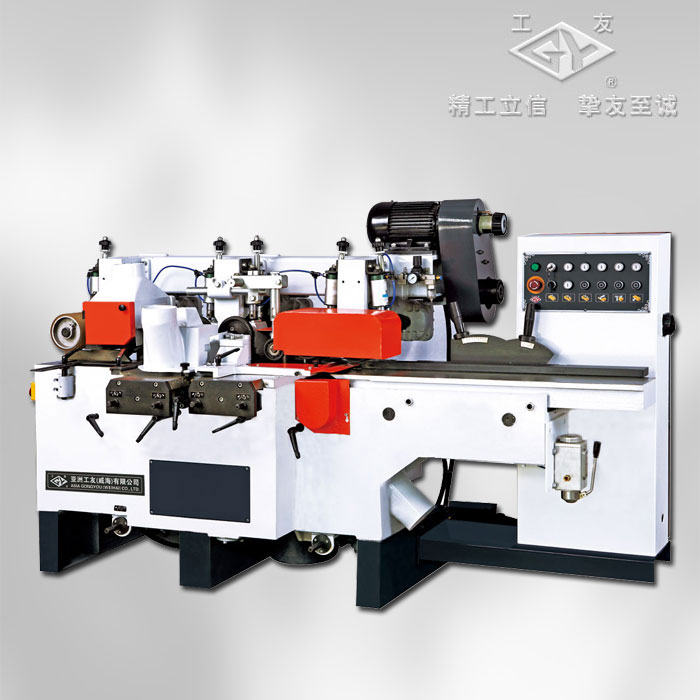

| Technical Specification | Unit | MB4012A |
| Max. planing width | mm | 125 |
| Min. planing width | mm | 25 |
| Max. planing thickness | mm | 80 |
| Min. planing thickness | mm | 10 |
| Front table length | mm | 1020 |
| Max. front table moving distance | mm | 5 |
| Max.right fence moving distance | mm | 10 |
| Feeding speed | m/min | 5～20 |
|
Overall dimensions(L×W×H) |
mm |
2600×1400×1420 |
| Weight | kg | 1600 |
| Compressed air demand | m3/h | 0.1 |
| Dust outlet dia. | mm | 120 |
| Feed roller diameter | mm | 140 |
| Spindle speed | r/min | 6000 |
| Level amount of cutter spindle motion(axial) | mm | 30 |
| Vertical amount of cutter spindle motion(axial) | mm | 20 |
| Total power： | ||
| Feeding motor power | kW | 1.5 |
| Lifting power of feeding motor | kW | 0.55 |
| Top horizontal cutter motor | kW | 3.0 |
| Motor power | kW | 5.5 |
| Bottom horizontal cutter motor | kW | 3.0 |
|
Total power |
kW | 13.55 |
| Air pressure | MPa | 0.6 |
